NXP Semiconductors Data sheet: Technical Data 17 mOhm and 7.0 mOhm high-side switches The 12XS6 is the latest SMARTMOS achievement in automotive light.

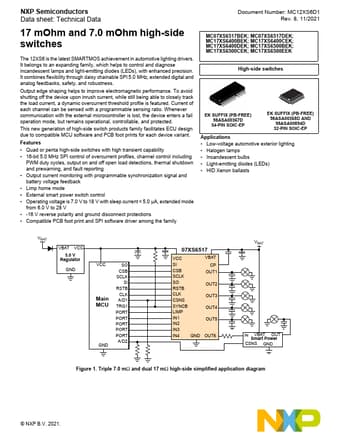

datasheet Preview Page 1 from Datasheet4u.com

MC17XS6500BEK-NXP.pdf

MC17XS6500BEK Datasheet Preview — Preview of MC17XS6500BEK PDF

Datasheet Details

Part number:

MC17XS6500BEK

Manufacturer:

NXP ↗

File Size:

1.13 MB

Description:

high-side switche

Features

* Quad or penta high-side switches with high transient capability
* 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty cycles, output on and off open load detections, thermal shutdown and prewarning, and fault reporting
* Output current mon

Applications

* Low-voltage automotive exterior lighting
* Halogen lamps
* Incandescent bulbs
* Light-emitting diodes (LEDs)
* HID Xenon ballasts VBAT VBAT VCC 5.0 V Regulator GND VCC Main MCU GND SO CSB SCLK SI RSTB CLK A/D1 TRG1 PORT PORT PORT PORT PORT A/D2 07XS6517
