MC33FS6502NAE, MC33FS4500CAE - Safety power system basis chip

Name: MC33FS6502NAE
SKU: MC33FS6502NAE-1544138

NXP

📥 Download Datasheet

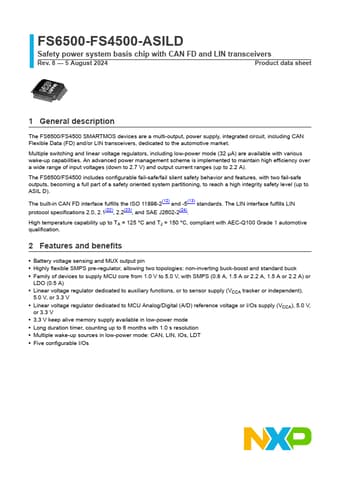

MC33FS6502NAE Datasheet Preview — This datasheet PDF includes multiple part numbers: MC33FS6502NAE, MC33FS4500CAE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MC33FS6502NAE, MC33FS4500CAE
Manufacturer	NXP
File Size	2.94 MB
Description	Safety power system basis chip
Datasheet	MC33FS4500CAE-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: MC33FS6502NAE, MC33FS4500CAE. Please refer to the document for exact specifications by model.

MC33FS6502NAE Product details

Description

The FS6500/FS4500 SMARTMOS devices are a multi-output, power supply, integrated circuit, including CAN Flexible Data (FD) and/or LIN transceivers, dedicated to the automotive market.

Features

Battery voltage sensing and MUX output pin.
Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost and standard buck.
Family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A, 1.5 A or 2.2 A, 1.5 A or 2.2 A) or LDO (0.5 A).
Linear voltage regulator dedicated to auxiliary functions, or to sensor supply (VCCA tracker or independent), 5.0 V, or 3.3 V.
Linear voltage regulator dedicated to MCU Analog/Digit.
