MC50XS4200DEK, MC50XS4200BEK - Dual 24V high-side switch

MC50XS4200DEK Description

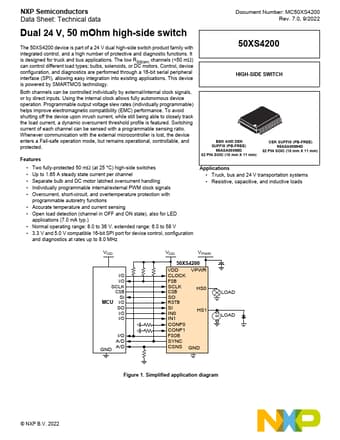

NXP Semiconductors Data Sheet: Technical data Document Number: MC50XS4200 Rev.7.0, 9/2022 Dual 24 V, 50 mOhm high-side switch The 50XS4200 device i.

MC50XS4200DEK Features

* Two fully-protected 50 mΩ (at 25 °C) high-side switches
* Up to 1.65 A steady state current per channel
* Separate bulb and DC motor latched overcurrent handling
* Individually programmable internal/external PWM clock signals
* Overcurrent, short-circuit, an

MC50XS4200DEK Applications

* The low RDS(on) channels (

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC50XS4200DEK, MC50XS4200BEK. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC50XS4200DEK, MC50XS4200BEK
Manufacturer
NXP ↗
File Size
1.85 MB
Datasheet
MC50XS4200BEK-NXP.pdf
Description
Dual 24V high-side switch
Note
This datasheet PDF includes multiple part numbers: MC50XS4200DEK, MC50XS4200BEK.
Please refer to the document for exact specifications by model.
