Part number	MC9S08PL16S
Manufacturer	NXP
File Size	562.80 KB
Description	MCU
Datasheet	MC9S08PL16S Datasheet

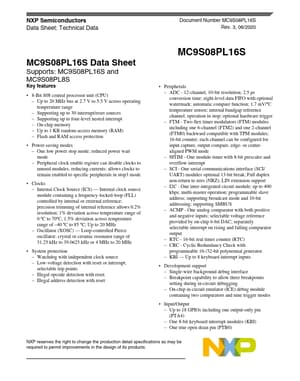

Additional preview pages of the MC9S08PL16S datasheet.

Product details

Description

7 Peripheral operating requirements and behaviors 21 3.2 Format7 7.1 External oscillator (XOSC) and ICS characteristics21 3.3 Fields

Features

8-Bit S08 central processor unit (CPU).
Up to 20 MHz bus at 2.7 V to 5.5 V across operating temperature range.
Supporting up to 30 interrupt/reset sources.
Supporting up to four-level nested interrupt.
On-chip memory.
Up to 1 KB random-access memory (RAM).
Flash and RAM access protection.
Power-saving modes.
One low power stop mode; reduced power wait mode.
Peripheral clock enable register can disable cloc.
