MCF51AG128 Datasheet - NXP

MCF51AG128 - ColdFire Microcontroller

Freescale Semiconductor Data Sheet: Technical Data Document Number: MCF51AG128 Rev.

5, 6/2010 MCF51AG128 ColdFire Microcontroller Covers: MCF51AG128 and MCF51AG96 MCF51AG128 80 LQFP 14 mm × 14 mm 64 LQFP 10 mm × 10 mm 48 LQFP 7 mm x 7mm 64 QFP 14 mm × 14 mm The MCF51AG128 is a member of the ColdFire® family of 32-bit variable-length reduced instruction set (RISC) microcontroller.

This document provides an overview of the MCF51AG128 series MCUs, focusing on its highly integrated and diver

MCF51AG128 Features

* the following functional units:

* 32-bit Version 1 ColdFire® central processor unit (CPU)

* Up to 50.33 MHz ColdFire CPU from 2.7 V to 5.5 V

* Provide 0.94 Dhrystone 2.1 DMIPS per MHz performance when running from internal RAM (0.76 DMIPS per MHz when running from flash)

MCF51AG128-NXP.pdf

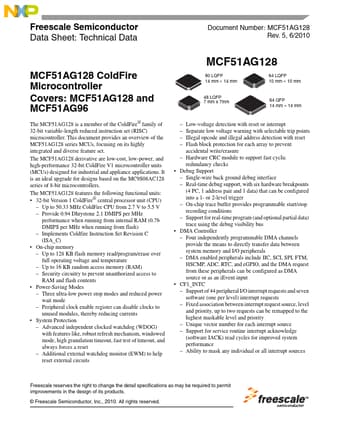

Preview of MCF51AG128 PDF
MCF51AG128 Datasheet Preview Page 2 MCF51AG128 Datasheet Preview Page 3

Datasheet Details

Part number:

MCF51AG128

Manufacturer:

NXP ↗

File Size:

1.41 MB

Description:

Coldfire microcontroller.
