MKM33Z128ACLH5, MKM14Z64ACHH5 - Microcontroller

NXP

📥 Download Datasheet

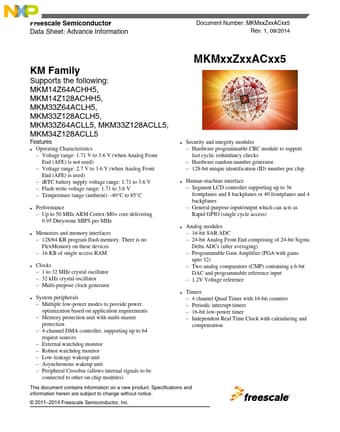

MKM33Z128ACLH5 Datasheet Preview — This datasheet PDF includes multiple part numbers: MKM33Z128ACLH5, MKM14Z64ACHH5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MKM33Z128ACLH5, MKM14Z64ACHH5
Manufacturer	NXP
File Size	1.70 MB
Description	Microcontroller
Datasheet	MKM14Z64ACHH5-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: MKM33Z128ACLH5, MKM14Z64ACHH5. Please refer to the document for exact specifications by model.

MKM33Z128ACLH5 Product details

Description

2.2 Format4 2.3 Fields4 2.4 Example5 3 Terminology and guidelines5 3.1 Definition: Operating requirement5 3.2 Definition: Operating behavior6 3.3 Definition: Attribute6 3.4 Definition: Rating6 3.5 Result of exceeding a rating7 3.6 Relationship between ratings and operating requirements7 3.7 Guidelines for ratings and operating requirements8 3.8 Definition: Typical value8 3.9 Typical value conditions9 4 Ratings10 4.1 Thermal handling ratings10 4.2 Moisture handling ratings10 4.3 ESD handling rat

Features

Operating Characteristics.
Voltage range: 1.71 V to 3.6 V (when Analog Front End (AFE) is not used).
Voltage range: 2.7 V to 3.6 V (when Analog Front End (AFE) is used).
iRTC battery supply voltage range: 1.71 to 3.6 V.
Flash write voltage range: 1.71 to 3.6 V.
Temperature range (ambient): -40°C to 85°C.
Performance.
Up to 50 MHz ARM Cortex-M0+ core delivering 0.95 Dhrystone MIPS per MHz.
Memories and memory interf.
