MKV10Z128VLC7 - 75MHz Cortex-M0+ Based Microcontroller

This page provides the datasheet information for the MKV10Z128VLC7, a member of the MKV11Z128VLH7 75MHz Cortex-M0+ Based Microcontroller family.

Datasheet Summary

Description

The Product Selector is a web-based tool to assist in selecting the MCU Product Selector product for your application.

The Product Brief contains concise overview/summary information to enable quick evaluation of a device for design suitability.

📥 Download Datasheet

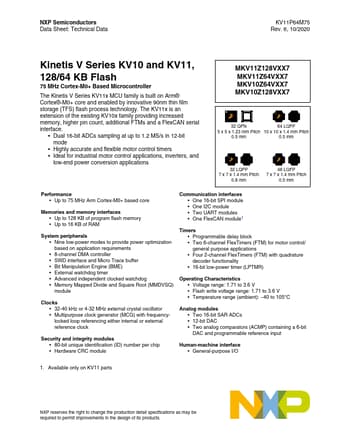

Datasheet preview – MKV10Z128VLC7

Datasheet Details

Part number MKV10Z128VLC7
Manufacturer NXP
File Size 1.03 MB
Description 75MHz Cortex-M0+ Based Microcontroller
Datasheet download datasheet MKV10Z128VLC7 Datasheet
Additional preview pages of the MKV10Z128VLC7 datasheet.

📁 Similar Datasheet

Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
NXP Semiconductors Data Sheet: Technical Data KV11P64M75 Rev. 6, 10/2020 Kinetis V Series KV10 and KV11, 128/64 KB Flash 75 MHz Cortex-M0+ Based Microcontroller The Kinetis V Series KV11x MCU family is built on Arm® Cortex®-M0+ core and enabled by innovative 90nm thin film storage (TFS) flash process technology. The KV11x is an extension of the existing KV10x family providing increased memory, higher pin count, additional FTMs and a FlexCAN serial interface. • Dual 16-bit ADCs sampling at up to 1.2 MS/s in 12-bit mode • Highly accurate and flexible motor control timers • Ideal for industrial motor control applications, inverters, and low-end power conversion applications MKV11Z128VXX7 MKV11Z64VXX7 MKV10Z64VXX7 MKV10Z128VXX7 32 QFN 64 LQFP 5 x 5 x 1.23 mm Pitch 10 x 10 x 1.
