NTM88H155S

Tire pressure monitor sensor

NXP

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	NXP Semiconductors	NTM88H155ST1	IC PRESSURE SENSOR 24HQFN	DigiKey	0	2000 units	$3.19	🛒 Buy Now

NTM88H155S Datasheet (811.32 KB)

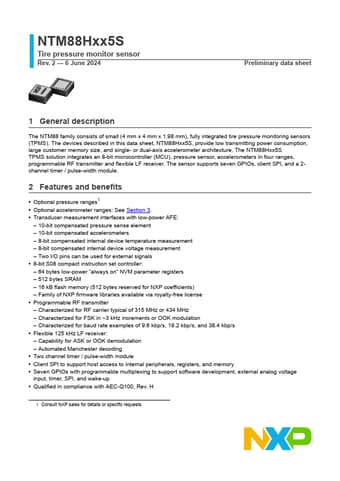

NTM88H155S Datasheet Preview — Preview of NTM88H155S PDF Datasheet

Datasheet Details

Part number:

NTM88H155S

Manufacturer:

NXP ↗

File Size:

811.32 KB

Description:

Tire pressure monitor sensor

NTM88H155S Features

* Optional pressure ranges1

* Optional accelerometer ranges: See Section 3.

* Transducer measurement interfaces with low-power AFE:

* 10-bit compensated pressure sense element

* 10-bit compensated accelerometers

* 8-bit compensated internal device temp

NTM88H155S General Description

The NTM88 family consists of small (4 mm x 4 mm x 1.98 mm), fully integrated tire pressure monitoring sensors (TPMS). The devices described in this data sheet, NTM88Hxx5S, provide low transmitting power consumption, large customer memory size, and single- or dual-axis accelerometer architecture. The.
