NTM88K135S, NTM88K135ST1 - Tire pressure monitor sensor

NXP

The NTM88K135S by NXP is a Tire pressure monitor sensor. Below is the official datasheet preview.

📥 Download Datasheet

NTM88K135S Tire pressure monitor sensor by NXP - Datasheet Preview — Official preview page of the NTM88K135S Tire pressure monitor sensor datasheet (NXP).

Datasheet Details

Part number	NTM88K135S, NTM88K135ST1
Manufacturer	NXP
File Size	746.18 KB
Description	Tire pressure monitor sensor
Datasheet	NTM88K135ST1-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: NTM88K135S, NTM88K135ST1. Please refer to the document for exact specifications by model.

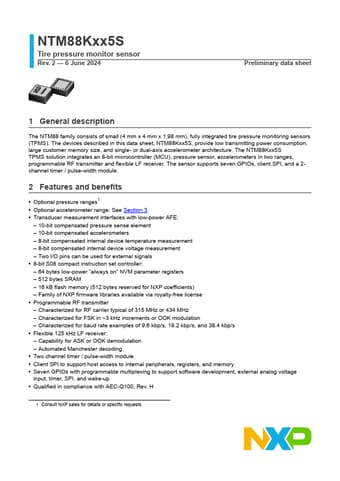

Additional preview pages of the NTM88K135S datasheet.

NTM88K135S Product details

Description

The NTM88 family consists of small (4 mm x 4 mm x 1.98 mm), fully integrated tire pressure monitoring sensors (TPMS).

Features

Optional pressure ranges1.
Optional accelerometer range: See Section 3.
Transducer measurement interfaces with low-power AFE:.
10-bit compensated pressure sense element.
10-bit compensated accelerometers.
8-bit compensated internal device temperature measurement.
8-bit compensated internal device voltage measurement.
Two I/O pins can be used for external signals.
8-bit S08 compact instruction set controller:.
