NTS0104-Q100 - Dual supply translating transceiver

NTS0104-Q100 Description

NTS0104-Q100 Dual supply translating transceiver; open drain; auto direction sensing Rev.3 * 7 August 2012 Product data sheet 1.General des.
The NTS0104-Q100 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation.

NTS0104-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from 40 C to +85 C and from 40 C to +125 C
* Wide supply voltage range:
* VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
* Maximum data rates:
* Push-pull: 50 Mbps
* IOFF circui

📥 Download Datasheet

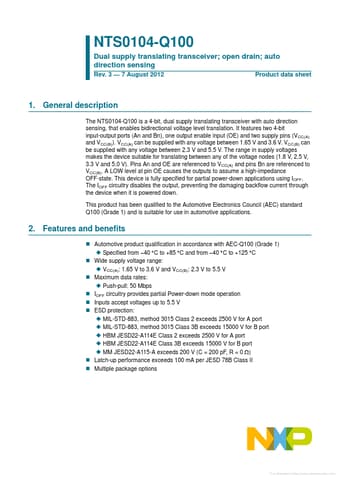

Preview of NTS0104-Q100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NTS0104-Q100
Manufacturer
NXP ↗
File Size
437.95 KB
Datasheet
NTS0104-Q100_NXP.pdf
Description
Dual supply translating transceiver
