NVT4858

micro SD and SIM card voltage level translator

NXP

NVT4858 Features

* Supports up to 208 MHz clock rate

* SD 3.0 specification-compliant voltage translation to support SDR104, SDR50, DDR50, SDR25, SDR12, High-Speed and Default-Speed modes

* Compliant with ISO-7816 SIM/Smart Card interface requirements

* Support SD/SIM card supply vol

NVT4858 General Description

The device is an SD 3.0-compliant bidirectional dual voltage level translator with auto-direction control. It is designed to interface between a memory or SIM card operating between 1.62 V to 3.6 V signal levels and a host with a supply voltage of 1.08 V to 1.98 V. The device supports SD 3.0 SDR104,.

NVT4858 Datasheet (635.71 KB)

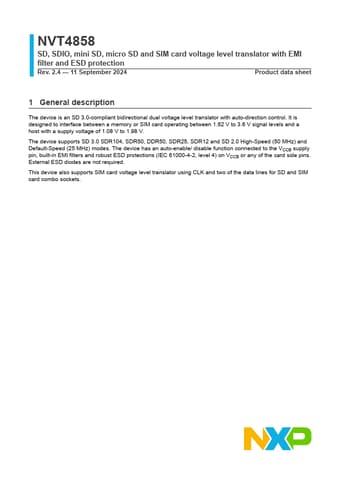

NVT4858 Datasheet Preview — Preview of NVT4858 PDF

Datasheet Details

Part number:

NVT4858

Manufacturer:

NXP ↗

File Size:

635.71 KB

Description:

Micro sd and sim card voltage level translator.
NVT4858 SD, SDIO, mini SD, micro SD and SIM card voltage level translator with EMI filter and ESD protection Rev. 2.4

* 11 September 2024 .
