P87C31X2 80C51 8-bit microcontroller family 4K/8K/16K/32K ROM/OTP 128B/256B RAM low voltage 2.7 to 5.5 V/ low power/ high speed 30/33 MHz

The Philips microcontrollers described in this data sheet are high-performance static 80C51 designs incorporating Philips’ high-density CMOS technology with operation from 2.7 V to 5.5 V. They support both 6-clock and 12-clock operation. The 8xC31X2/51X2 and 8xC32X2/52X2/54X2/58X2 contain 128 byte R.

P87C31X2 Features

* 80C51 Central Processing Unit

* 4 kbytes ROM/EPROM (80/87C51X2)

* 8 kbytes ROM/EPROM (80/87C52X2)

* 16 kbytes ROM/EPROM (80/87C54X2)

* 32 kbytes ROM/EPROM (80/87C58X2)

* 128 byte RAM (80/87C51X2 and 80C31X2)

* 256 byte RAM (80/87C52/54X2/58X

P87C31X2 Datasheet (380.41 KB)

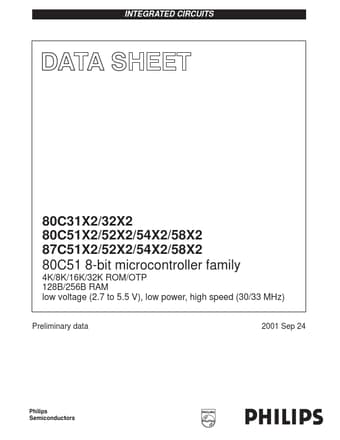

P87C31X2 Datasheet Preview — Preview of P87C31X2 PDF

Datasheet Details

Part number:

P87C31X2

Manufacturer:

NXP ↗

File Size:

380.41 KB

Description:

80c51 8-bit microcontroller family 4k/8k/16k/32k rom/otp 128b/256b ram low voltage 2.7 to 5.5 v/ low power/ high speed 30/33 mhz.
