PCA21125 Datasheet PDF - NXP SPI-bus Real-Time Clock/calendar Specs

PCA21125 - SPI-bus Real-Time Clock/calendar

Datasheet Summary

Description

The PCA21125 is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low-power consumption and an operating temperature up to 125 C.

Data is transferred via a Serial Peripheral Interface (SPI-bus) with a maximum data rate of 6.0 Mbit/s.

Features

AEC Q100 compliant for automotive.

Datasheet Details

Part number	PCA21125
Manufacturer	NXP
File Size	341.41 KB
Description	SPI-bus Real-Time Clock/calendar
Datasheet	PCA21125 Datasheet
Additional preview pages of the PCA21125 datasheet.

📁 Similar Datasheet

PCA2125 - SPI Real-time clock/calendar (NXP Semiconductors)

PCA24S08 - 1024 x 8-bit CMOS EEPROM (NXP Semiconductors)

PCA0102A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

PCA0163A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

PCA0174A-LF - Telecommunications - Satellite (Z-Communications)

PCA0198A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

PCA0300A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

PCA0445A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

PCA0495A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

PCA1127A - PHASE LOCKED LOOP (Z-Communications)

Full PDF Text Transcription

Click to expand full text

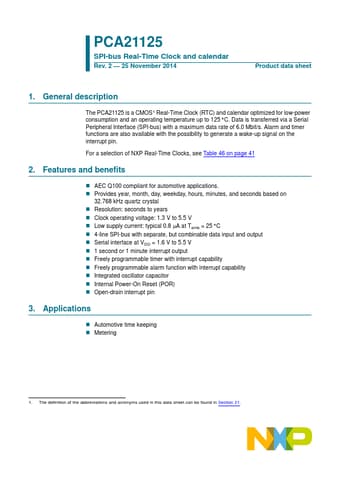

PCA21125 SPI-bus Real-Time Clock and calendar Rev. 2 — 25 November 2014 Product data sheet 1. General description The PCA21125 is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low-power consumption and an operating temperature up to 125 C. Data is transferred via a Serial Peripheral Interface (SPI-bus) with a maximum data rate of 6.0 Mbit/s. Alarm and timer functions are also available with the possibility to generate a wake-up signal on the interrupt pin. For a selection of NXP Real-Time Clocks, see Table 46 on page 41 2. Features and benefits  AEC Q100 compliant for automotive applications.  Provides year, month, day, weekday, hours, minutes, and seconds based on 32.768 kHz quartz crystal  Resolution: seconds to years  Clock operating voltage: 1.3 V to 5.
