PCD3316 - Caller-ID on Call Waiting CIDCW receiver

Datasheet Summary

Description

The PCD3316 is a low power mixed signal CMOS integrated circuit for receiving physical layer signals like Bellcore’s ‘CPE1 Alerting Signal (CAS)’ and the signals used in similar services.

Features

  • s Bellcore’s ‘CPE Alerting Signal (CAS)’ and British Telecom’s (BT) ‘Loop State Tone Alert Signal’ detection s BT’s ‘Idle State Tone Alert Signal’ by means of monitoring the input signal level s 1200 baud FSK demodulator conform Bell 202 and CCITT V23 standards s Ring or polarity change detector s Ring period measurement s Low battery comparator s Signal level detector s On-hook and off-hook.

📥 Download Datasheet

Datasheet preview – PCD3316

Datasheet Details

Part number PCD3316
Manufacturer NXP
File Size 534.27 KB
Description Caller-ID on Call Waiting CIDCW receiver
Datasheet download datasheet PCD3316 Datasheet
Additional preview pages of the PCD3316 datasheet.

📁 Similar Datasheet

  • PCD3311 - DTMF/modem.Musical Tone Generator (Signetics)
  • PCD3312 - DTMF/modem.Musical Tone Generator (Signetics)
  • PCD3341A - (PCD33xxA) 8 Bit Telecom Microcontrollers (Philips)
  • PCD3-12-1212 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PCD3-24-1212 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PCD3-48-1212 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PCD3-5-1212 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PCD32 - Solid State Relay (Picker)
  • PCD-103D1MH - ELECTROMECHANICAL RELAY (Tyco Electronics)
  • PCD-105-D2M - Low Profile PCB Relay (Tyco Electronics)
Other Datasheets by NXP
  • PCD3310 - Pulse and DTMF diallers with redial
  • PCD3310A - Pulse and DTMF diallers with redial
  • PCD3311C - DTMF/modem/musical-tone generators
  • PCD3312C - DTMF/modem/musical-tone generators
  • PCD3326C - (PCD332xC Series) Pulse Dialler Circuits
  • PCD332xC - (PCD332xC Series) Pulse Dialler Circuits
  • PCD3330-1 - Multistandard repertory dialler/ringer with EEPROM
  • PCD3332-2 - Multistandard pulse/tone repertory diallers/ringers

Full PDF Text Transcription

Click to expand full text

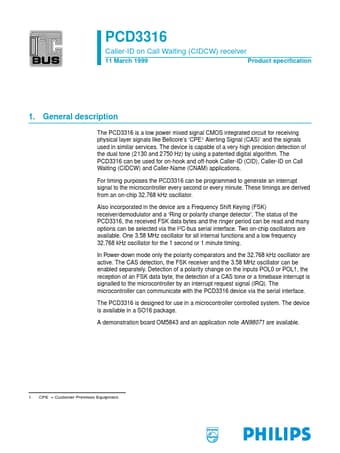

PCD3316 Caller-ID on Call Waiting (CIDCW) receiver 11 March 1999 Product specification 1. General description The PCD3316 is a low power mixed signal CMOS integrated circuit for receiving physical layer signals like Bellcore’s ‘CPE1 Alerting Signal (CAS)’ and the signals used in similar services. The device is capable of a very high precision detection of the dual tone (2130 and 2750 Hz) by using a patented digital algorithm. The PCD3316 can be used for on-hook and off-hook Caller-ID (CID), Caller-ID on Call Waiting (CIDCW) and Caller-Name (CNAM) applications. For timing purposes the PCD3316 can be programmed to generate an interrupt signal to the microcontroller every second or every minute. These timings are derived from an on-chip 32.768 kHz oscillator.
