PESD15VS1ULD, Unidirectional ESD protection diode

PESD15VS1ULD Unidirectional ESD protection diode Rev.1 * 11 May 2011 Product data sheet 1.Product profile 1.1 General .
Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

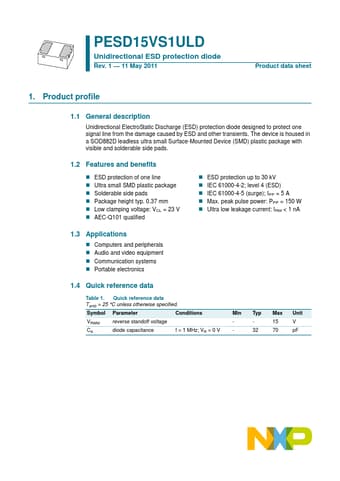

datasheet Preview Page 1 from Datasheet4u.com

PESD15VS1ULD-NXP.pdf

PESD15VS1ULD Datasheet Preview — Preview of PESD15VS1ULD PDF

Datasheet Details

Part number:

PESD15VS1ULD

Manufacturer:

NXP ↗

File Size:

165.47 KB

Description:

Unidirectional ESD protection diode

Features

* ESD protection of one line
* Ultra small SMD plastic package
* Solderable side pads
* Package height typ. 0.37 mm
* Low clamping voltage: VCL = 23 V
* AEC-Q101 qualified
* ESD protection up to 30 kV
* IEC 61000-4-2; level 4 (ESD)

Applications

* Computers and peripherals
* Audio and video equipment
* Communication systems
* Portable electronics 1.4 Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VRWM reverse standoff voltage Cd d
