PESD5V0F1BLD

Femtofarad bidirectional ESD protection diode

NXP

PESD5V0F1BLD Features

* Bidirectional ESD protection of one line

* ESD protection up to 10 kV

* Femtofarad capacitance: Cd = 400 fF

* Low ESD clamping voltage: 30 V

* IEC 61000-4-2; level 4 (ESD)

* Package height typ. 0.37 mm at 30 ns and 8 kV

* Very low leakage current: IRM < 1 nA

PESD5V0F1BLD General Description

Femtofarad bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and sold.

PESD5V0F1BLD Datasheet (155.50 KB)

PESD5V0F1BLD Datasheet Preview — Preview of PESD5V0F1BLD PDF

Datasheet Details

Part number:

PESD5V0F1BLD

Manufacturer:

NXP ↗

File Size:

155.50 KB

Description:

Femtofarad bidirectional esd protection diode.

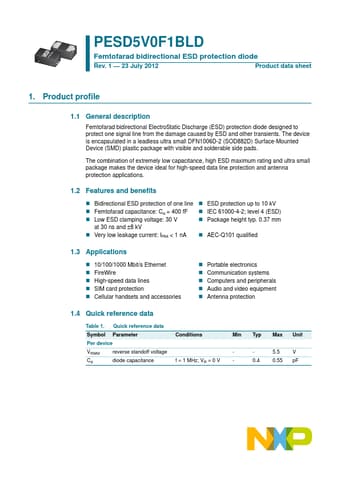

DFN1006D-2 PESD5V0F1BLD Femtofarad bidirectional ESD protection diode Rev. 1

* 23 July 2012 Product data sheet 1. Product profile 1.1 Ge.
