PESD5V0F1BRLD

Femtofarad bidirectional ESD protection diode

NXP

PESD5V0F1BRLD Features

* Bidirectional ESD protection of one line

* ESD protection up to 10 kV (contact) and 15 kV (air)

* Femtofarad capacitance: Cd = 400 fF

* Low ESD clamping voltage: 30 V

* IEC 61000-4-2; level 4 (ESD)

* Package height typ. 0.37 mm at 30 ns and 8 kV

* Very low leakag

PESD5V0F1BRLD General Description

Femtofarad bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and sold.

PESD5V0F1BRLD Datasheet (199.81 KB)

PESD5V0F1BRLD Datasheet Preview — Preview of PESD5V0F1BRLD PDF

Datasheet Details

Part number:

PESD5V0F1BRLD

Manufacturer:

NXP ↗

File Size:

199.81 KB

Description:

Femtofarad bidirectional esd protection diode.

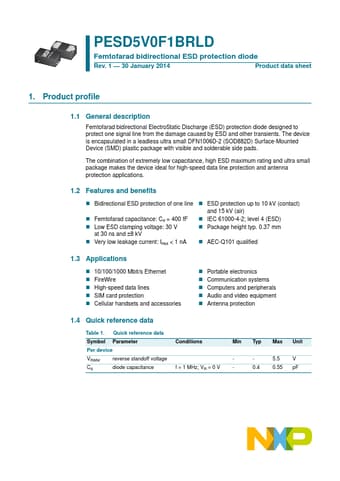

DFN1006D-2 PESD5V0F1BRLD Femtofarad bidirectional ESD protection diode Rev. 1

* 30 January 2014 Product data sheet 1. Product profile 1..
