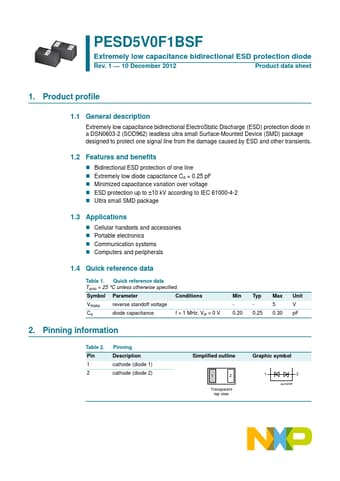

PESD5V0F1BSF
description
Extremely low capacitance bidirectional Electro Static Discharge (ESD) protection diode in a DSN0603-2 (SOD962) leadless ultra small Surface-Mounted Device (SMD) package designed to protect one signal line from the damage caused by ESD and other transients.
1.2 Features and benefits
- Bidirectional ESD protection of one line
- Extremely low diode capacitance Cd = 0.25 p F
- Minimized capacitance variation over voltage
- ESD protection up to 10 k V according to IEC 61000-4-2
- Ultra small SMD package
1.3 Applications
- Cellular handsets and accessories
- Portable electronics
- munication systems
- puters and peripherals
1.4 Quick reference data
Table 1. Quick reference data Tamb = 25 C unless otherwise specified.
Symbol Parameter
Conditions
VRWM reverse standoff voltage
Cd diode capacitance f = 1 MHz; VR = 0 V
Min Typ Max Unit
- - 5V 0.20 0.25 0.30 p F
2. Pinning information
Table 2. Pin 1 2
Pinning Description cathode (diode 1) cathode (diode 2)
Simplified...
