PF9453 Datasheet, Management, NXP

PF9453 Features

  • Management
  • Four buck regulators
      – BUCK1: 0.6 V to 3.775 V, 25 mV step, 2000 mA
      – BUCK2: 0.6 V to 2.1875 V, 12.5 mV step, 2700 mA (QFN) / 2000 mA (WLCSP) <

PDF File Details

Part number:

PF9453

Manufacturer:

NXP ↗

File Size:

957.95kb

Download:

📄 Datasheet

Description:

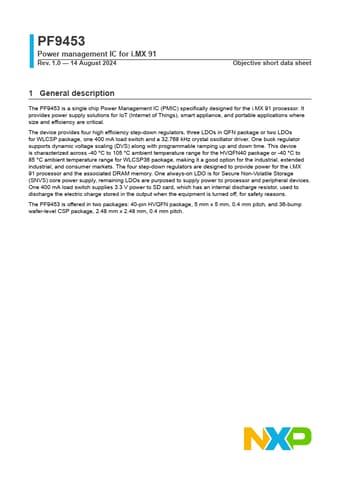

Power management. The PF9453 is a single chip Power Management IC (PMIC) specifically designed for the i.MX 91 processor. It provides power supply solu

Datasheet Preview: PF9453 📥 Download PDF (957.95kb)
Page 2 of PF9453 Page 3 of PF9453

PF9453 Application

  • Applications where size and efficiency are critical. The device provides four high efficiency step-down regulators, three LDOs in QFN package or two
