PTVS18VP1UP, PTVSxP1UP, 600 W Transient Voltage Suppressor

PTVSxP1UP series 600 W Transient Voltage Suppressor Rev.2 * 6 January 2011 Product data sheet 1.Product profile 1.1 General .
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for tra.

PTVSxP1UP_NXP.pdf

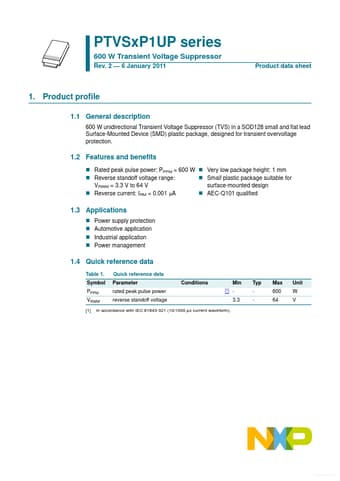

PTVS18VP1UP Datasheet Preview — This datasheet PDF includes multiple part numbers: PTVS18VP1UP, PTVSxP1UP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PTVS18VP1UP, PTVSxP1UP

Manufacturer:

NXP ↗

File Size:

138.15 KB

Description:

600 W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: PTVS18VP1UP, PTVSxP1UP.
Please refer to the document for exact specifications by model.

Features

* Rated peak pulse power: PPPM = 600 W
* Very low package height: 1 mm
* Reverse standoff voltage range:
* Small plastic package suitable for VRWM = 3.3 V to 64 V surface-mounted design
* Reverse current: IRM = 0.001 μA
* AEC-Q101 qualified 1.3 Applic

Applications

* Power supply protection Automotive application Industrial application Power management 1.4 Quick reference data Table 1. Symbol PPPM VRWM [1] Quick reference data Parameter rated peak pulse power reverse standoff voltage Conditions [1] Min 3.3 Typ - Max 6
