PTVS58VP1UP, PTVSxP1UP - 600 W Transient Voltage Suppressor

NXP

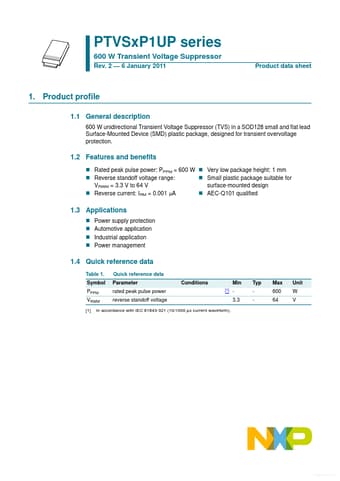

PTVS58VP1UP Datasheet Preview — This datasheet PDF includes multiple part numbers: PTVS58VP1UP, PTVSxP1UP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PTVS58VP1UP, PTVSxP1UP
Manufacturer	NXP ↗
File Size	138.15 KB
Description	600 W Transient Voltage Suppressor
Datasheet	PTVSxP1UP_NXP.pdf
Note	This datasheet PDF includes multiple part numbers: PTVS58VP1UP, PTVSxP1UP. Please refer to the document for exact specifications by model.

PTVS58VP1UP Product details

Description

600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.

Features

Rated peak pulse power: PPPM = 600 W.
Very low package height: 1 mm.
Reverse standoff voltage range:.
Small plastic package suitable for VRWM = 3.3 V to 64 V surface-mounted design.
Reverse current: IRM = 0.001 μA.
AEC-Q101 qualified 1.3.
