S1A SMA controlled avalanche rectifiers

NXP

S1A Description

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D168 S1 series SMA controlled avalanche rectifiers Product speciﬁcation 2000 Feb 14 Philips Se.
DO-214AC surface mountable package with glass passivated chip.

S1A Features

* Glass passivated
* High maximum operating temperature

S1A Applications

* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* UL 94V-O classified plastic package
* Shipped in 12 mm embossed tape
* Marking: cathode, date code, type code
* Easy pick and place. Top view olum

📥 Download Datasheet

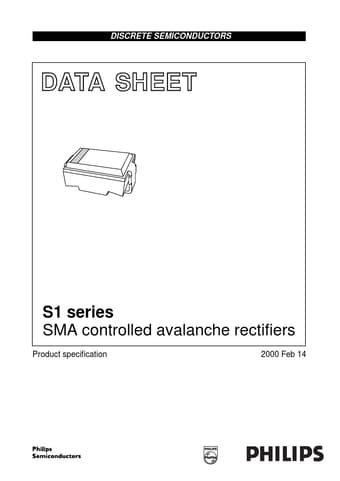

S1A Datasheet Preview — Preview of S1A PDF

Datasheet Details

Part number: S1A
Manufacturer: NXP ↗
File Size: 59.96 KB
Datasheet: S1A_PhilipsSemiconductors.pdf
Description: SMA controlled avalanche rectifiers
