S1B

SMA controlled avalanche rectifiers

S1B Features

* Glass passivated

* High maximum operating temperature

* Ideal for surface mount automotive applications

* Low leakage current

* Excellent stability

* Guaranteed avalanche energy absorption capability

* UL 94V-O classified plastic package

S1B General Description

DO-214AC surface mountable package with glass passivated chip. The well-defined void-free case is of a transfer-moulded thermo-setting plastic. The small rectangular package has two J bent leads. cathode band k a Side view MSA474 Fig.1 Simplified outline (DO-214AC) and symbol. LIMITING VALUES I.

S1B Datasheet (59.96 KB)

Preview of S1B PDF

Datasheet Details

Part number:

S1B

Manufacturer:

NXP ↗

File Size:

59.96 KB

Description:

Sma controlled avalanche rectifiers.

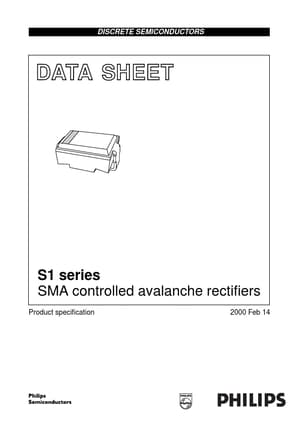

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D168 S1 series SMA controlled avalanche rectifiers Product specification 2000 Feb 14 Philips Se.
