S9KEAZN16AMLH, S9KEA64P64M20SF0 - 32-bit MCU

NXP

📥 Download Datasheet

S9KEAZN16AMLH Datasheet Preview — This datasheet PDF includes multiple part numbers: S9KEAZN16AMLH, S9KEA64P64M20SF0. Please refer to the document for exact specifications by model.

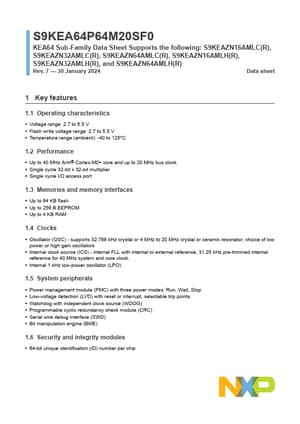

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S9KEAZN16AMLH, S9KEA64P64M20SF0
Manufacturer	NXP
File Size	709.63 KB
Description	32-bit MCU
Datasheet	S9KEA64P64M20SF0-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: S9KEAZN16AMLH, S9KEA64P64M20SF0. Please refer to the document for exact specifications by model.

S9KEAZN16AMLH Product details

Description

Part numbers for the chip have fields that identify the specific part. 30 January 2024 © 2024 NXP B.V.All rights reserved.2 / 29 NXP Semiconductors S9KEA64P64M20SF0 KEA64 Sub-Family Data She

Features

1.1 Operating characteristics.
Voltage range: 2.7 to 5.5 V.
Flash write voltage range: 2.7 to 5.5 V.
Temperature range (ambient): -40 to 125°C 1.2 Performance.
Up to 40 MHz Arm® Cortex-M0+ core and up to 20 MHz bus clock.
Single cycle 32-bit x 32-bit multiplier.
Single cycle I/O access port 1.3 Memories and memory interfaces.
Up to 64 KB flash.
Up to 256 B EEPROM.
Up to 4 KB RAM 1.4 Clocks.
Oscillator (OSC).
