S9S08QD4 - Microcontrollers

Name: S9S08QD4
SKU: S9S08QD4-1406576

NXP

📥 Download Datasheet

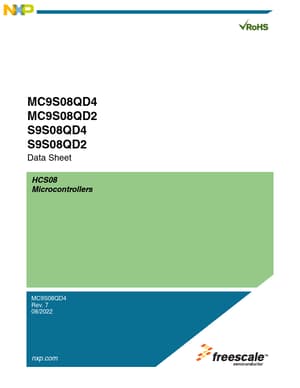

S9S08QD4 Datasheet Preview — Preview of S9S08QD4 PDF

Datasheet Details

Part number	S9S08QD4
Manufacturer	NXP
File Size	1.48 MB
Description	Microcontrollers
Datasheet	S9S08QD4-NXP.pdf

S9S08QD4 Product details

Description

of Changes 15 Sep 06 09 Jan 07 19 Nov.07 9 Sep 08 24 Nov 08 14 Oct 10 24 Aug 22 Initial public release Added MC9S08QD2 information; added “M” temperature range ( 40 °C to 125 °C); updated temperature sensor equation in the ADC chapter.

Features

8-Bit HCS08 Central Processor Unit (CPU).
Flash block protect.
16 MHz HCS08 CPU (central processor unit).
HC08 instruction set with added BGND instruction.
Background debugging system.
Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module).
Support for up to 32 interrupt/reset sources Memory.
Flash read/program/erase over full operating voltage and t.
