SAA7128H Datasheet, Encoder, NXP

SAA7128H Features

  • Encoder s Monolithic CMOS 3.3 V device, 5 V I2C-bus optional s Digital PAL/NTSC/SECAM encoder s System pixel frequency 13.5 MHz s 54 MHz double-speed multiplexed D1 interface capable of splitti

PDF File Details

Part number:

SAA7128H

Manufacturer:

NXP ↗

File Size:

214.58kb

Download:

📄 Datasheet

Description:

Digital video encoder. The SAA7128H; SAA7129H encodes digital CR-Y-CB video data to an NTSC, PAL or SECAM CVBS or S-video signal. Simultaneously, RGB or byp

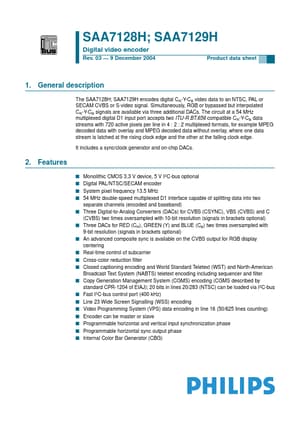

Datasheet Preview: SAA7128H 📥 Download PDF (214.58kb)
