SAA7129H - Digital video encoder

Product Overview

NXP

Part number	SAA7129H
Manufacturer	NXP
File Size	214.58 KB
Description	Digital video encoder
Datasheet	SAA7129H Datasheet

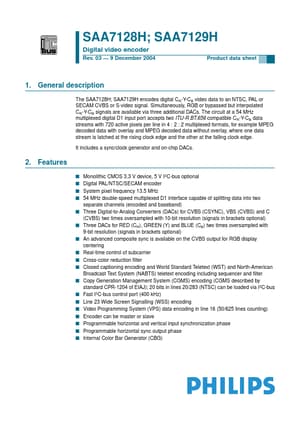

Additional preview pages of the SAA7129H datasheet.

The SAA7128H; SAA7129H encodes digital CR-Y-CB video data to an NTSC, PAL or SECAM CVBS or S-video signal.

s Monolithic CMOS 3.3 V device, 5 V I2C-bus optional s Digital PAL/NTSC/SECAM encoder s System pixel frequency 13.5 MHz s 54 MHz double-speed multiplexed D1 interface capable of splitting data into two separate channels (encoded and baseband) s Three Digital-to-Analog Converters (DACs) for CVBS (CSYNC), VBS (CVBS) and C (CVBS) two times oversampled with 10-bit resolution (signals in brackets optional) s Three DACs for RED (CR), GREEN (Y) and BLUE (CB) two times oversampled with 9-bit resolution.
