SAA7366 Bitstream conversion ADC

SAA7366 Description

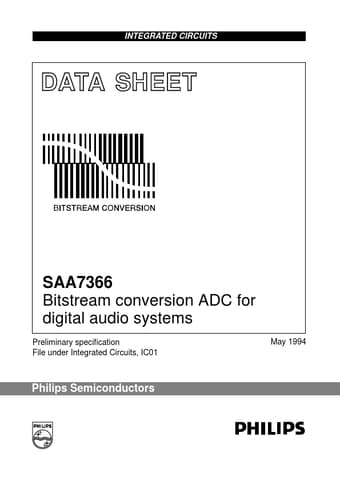

INTEGRATED CIRCUITS DATA SHEET SAA7366 Bitstream conversion ADC for digital audio systems Preliminary specification File under Integrated Circuits, I.
The SAA7366 is a CMOS cost effective stereo analog-to-digital converter (ADC) using the Philips bitstream conversion technique.

SAA7366 Features

* Integrated buffers for simple interfacing to analog inputs
* 4 flexible serial interface modes
* Overload detection of digital signal ≥
* 1 dB amplitude
* Selectable high-pass filter
* 18-bit serial output
* 3.4 to 5.5 V operation of digital pa

SAA7366 Applications

* SAA7366 The device is designed for digital acquisition of analog audio signals for digital audio systems such as:
* CD-recordable
* Digital Compact Cassette (DCC)
* Digital Audio Tape (DAT). UNIT V V MHz dB dB ORDERING INFORMATION PACKAGE TYPE NUMBER PINS SAA7366T(1) Note
