SAA7500 Digital satellite radio broadcasting tuner decoder

SAA7500 Description

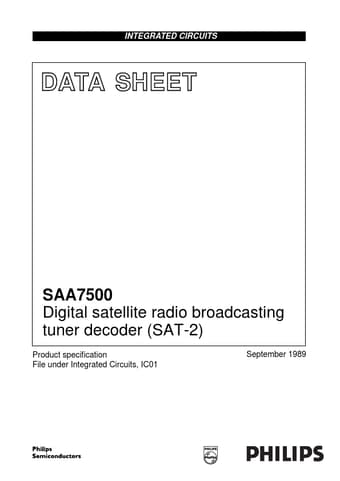

INTEGRATED CIRCUITS DATA SHEET SAA7500 Digital satellite radio broadcasting tuner decoder (SAT-2) Product speciļ¬cation File under Integrated Circuit.
The SAA7500 performs a decoder function for digital satellite sound broadcasting tuners.

SAA7500 Features

* Clock recovery
* Differential decoding QUICK REFERENCE DATA PARAMETER Supply voltage Power dissipation Clock frequency PACKAGE OUTLINE Ptot T20N 20.48 SYMBOL VDD 4.5 MIN. 5.5 500 MAX.
* Main frame synchronization SAA7500
* Swapping half-frames in case of inversion
