SAA9750H

Camera Digital Signal Processor

NXP

SAA9750H Features

* Y/C separator for mosaic filter colour CCD which can be used with PAL or NTSC CCDs with horizontal resolution of 510, 670, 720 or 768 pixels

* Line sequential colour processing (R

* Y) and (B

* Y)

* 9 bit input signal (the internal processing is 10-bit)

SAA9750H General Description

The Camera Digital Signal Processor (CAMDSP) is intended for use with a mosaic filter colour CCD. The IC generates luminance and chrominance signals from the CCD signal. The device consists of a luminance and colour separator employing two 768 × 9 line memories, a PAL/NTSC encoder, a dual 8-bit vide.

SAA9750H Datasheet (114.96 KB)

SAA9750H Datasheet Preview — Preview of SAA9750H PDF

Datasheet Details

Part number:

SAA9750H

Manufacturer:

NXP ↗

File Size:

114.96 KB

Description:

Camera digital signal processor.

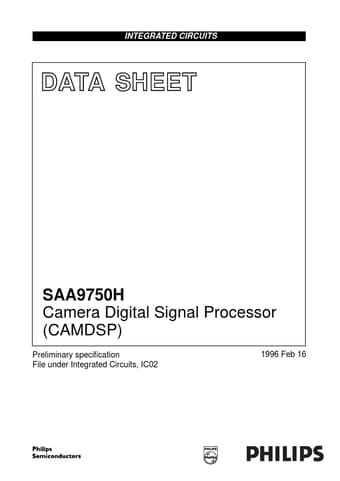

INTEGRATED CIRCUITS DATA SHEET SAA9750H Camera Digital Signal Processor (CAMDSP) Preliminary speciﬁcation File under Integrated Circuits, IC02 1996 .
