SAF3601

Digital radio and processing system-on-chip

SAF3601 Features

* Next generation HD Radio / DAB / DAB+ / T-DMB / DRM solution for breakthrough in system cost reduction

* Dual channel processing with on-chip dual DAB front-end, memory and source decoding

* End-of-production line programmability

* DAB-FM / DAB-DAB blending

SAF3601 General Description

The SAF360x is a monolithic integrated digital terrestrial radio processor. The SAF360x family includes different chip variants

*SAF3600, SAF3601, SAF3602, SAF3604, SAF3606, SAF3607. The SAF360x provides reception, demodulation, audio decoding and application processing for various digital ra.

SAF3601 Datasheet (644.27 KB)

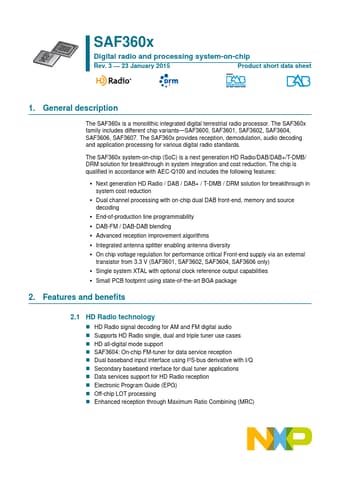

Preview of SAF3601 PDF

Datasheet Details

Part number:

SAF3601

Manufacturer:

NXP ↗

File Size:

644.27 KB

Description:

Digital radio and processing system-on-chip.
