TDA10021HT Datasheet - NXP

DVB-C channel receiver

TDA10021HT Features

* 4, 16, 32, 64, 128 and 256 Quadrature Amplitude Modulation (QAM) demodulator (DVB-C compatible: ETS 300-429/ITU-T J83 annex A/C)

* High performance for 256 QAM, especially for direct IF applications

* On-chip 10-bit Analog-to-Digital Converter (ADC)

* On-chip Phase-

TDA10021HT General Description

GENERAL DESCRIPTION TDA10021HT The TDA10021HT is a single-chip DVB-C channel receiver for 4, 16, 32, 64, 128 and 256 QAM modulated signals. The device interfaces directly to the IF signal, which is sampled by a 10-bit ADC. The TDA10021HT performs the clock and the carrier recovery functions. The d.

TDA10021HT Datasheet (92.74 KB)

TDA10021HT Datasheet Preview — Preview of TDA10021HT PDF

Datasheet Details

Part number:

TDA10021HT

Manufacturer:

NXP ↗

File Size:

92.74 KB

Description:

Dvb-c channel receiver.

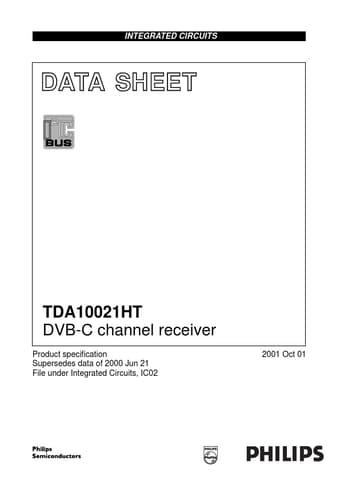

INTEGRATED CIRCUITS DATA SHEET TDA10021HT DVB-C channel receiver Product speciﬁcation Supersedes data of 2000 Jun 21 File under Integrated Circuits,.
