TDA1015 1 to 4 W audio power amplifier

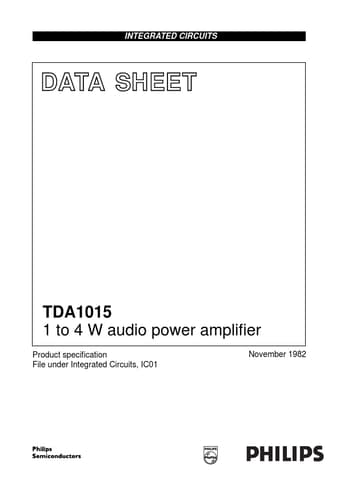

INTEGRATED CIRCUITS DATA SHEET TDA1015 1 to 4 W audio power amplifier Product specification File under Integrated Circuits, IC01 November 1982 Philips Semiconductors Product specification 1 to 4 W audio power amplifier TDA1015 The TDA1015 is a monolithic integrated audio amplifier circuit in a 9-lead single in-line (SIL) plastic package. The device is especially designed for portable radio and recorder applications and delivers up to 4 W in a 4 Ω load impedance. The very low applicable suppl.

TDA1015 Features

* are:

* single in-line (SIL) construction for easy mounting

* separated preamplifier and power amplifier

* high output power

* thermal protection

* high input impedance

* low current drain

* limited noise behaviour at radio frequencies QUICK REF
