TDA1023 - Proportional-control triac

TDA1023 Description

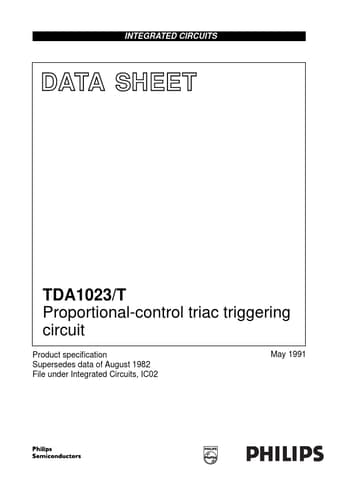

INTEGRATED CIRCUITS DATA SHEET TDA1023/T Proportional-control triac triggering circuit Product speciļ¬cation Supersedes data of August 1982 File unde.
APPLICATIONS. Panel heaters. Temperature control TDA1023/T The TDA1023 is a bipolar integrated circuit for controlling triacs in a.

TDA1023 Features

* Adjustable width of proportional range
* Adjustable hysteresis
* Adjustable width of trigger pulse
* Adjustable repetition timing of firing burst
* Control range translation facility
* Fail safe operation
* Supplied from the mains
* P

TDA1023 Applications

* Panel heaters
* Temperature control TDA1023/T The TDA1023 is a bipolar integrated circuit for controlling triacs in a proportional time or burst firing mode. Permitting precise temperature control of heating equipment it is especially suited to the control of panel heaters. It ge
