TDA3843

Sound-IF circuit for TV AM-sound standard L and L

TDA3843 Features

* 5 to 8 V power supply and an alternative 12 V power supply

* Low power consumption (200 mW) at 5 V supply voltage

* New AC-coupled wideband IF-amplifier (high dynamic ranges, less intermodulation)

* In-phase wideband AM demodulator without external reference circuit

TDA3843 Datasheet (63.63 KB)

Preview of TDA3843 PDF

Datasheet Details

Part number:

TDA3843

Manufacturer:

NXP ↗

File Size:

63.63 KB

Description:

Sound-if circuit for tv am-sound standard l and l.

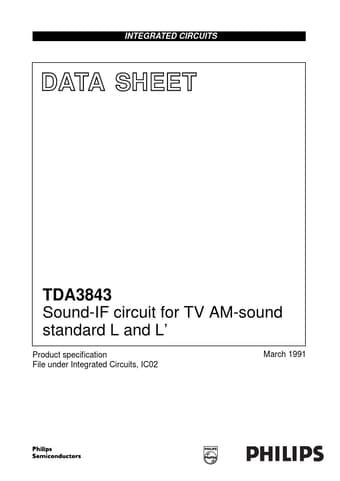

INTEGRATED CIRCUITS DATA SHEET TDA3843 Sound-IF circuit for TV AM-sound standard L and L’ Product specification File under Integrated Circuits, IC02 .
