TDA3867T

Quasi-split sound processor with two FM demodulators

TDA3867T Features

* Quasi-split sound processor for all FM standards e.g. B/G TDA3867T

* Reduction of spurious video signals by tracking function and AFC for the vision carrier reference circuit; (indispensable for NICAM)

* AF2 signal automatically muted (at B/G) by the input signal level GE

TDA3867T General Description

Symmetrical IF input and gain controlled wideband IF amplifier. AGC generation due to peak sync Reference amplifier for the regeneration of the vision carrier. Optimized limiting amplifier for AM suppression in the regenerated vision carrier signal and 90° phase shifter. Intercarrier mixer for FM so.

TDA3867T Datasheet (113.27 KB)

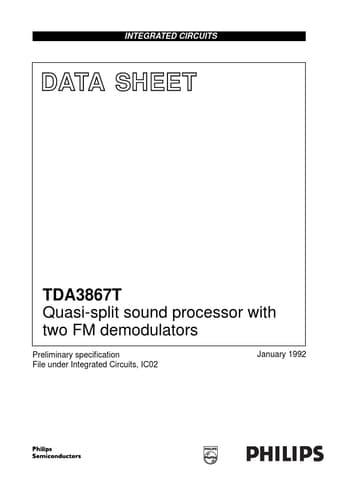

Preview of TDA3867T PDF

Datasheet Details

Part number:

TDA3867T

Manufacturer:

NXP ↗

File Size:

113.27 KB

Description:

Quasi-split sound processor with two fm demodulators.
INTEGRATED CIRCUITS DATA SHEET TDA3867T Quasi-split sound processor with two FM demodulators Preliminary specification File under Integrated Circuits.
