TDA8051 - QPSK receiver

NXP

📥 Download Datasheet

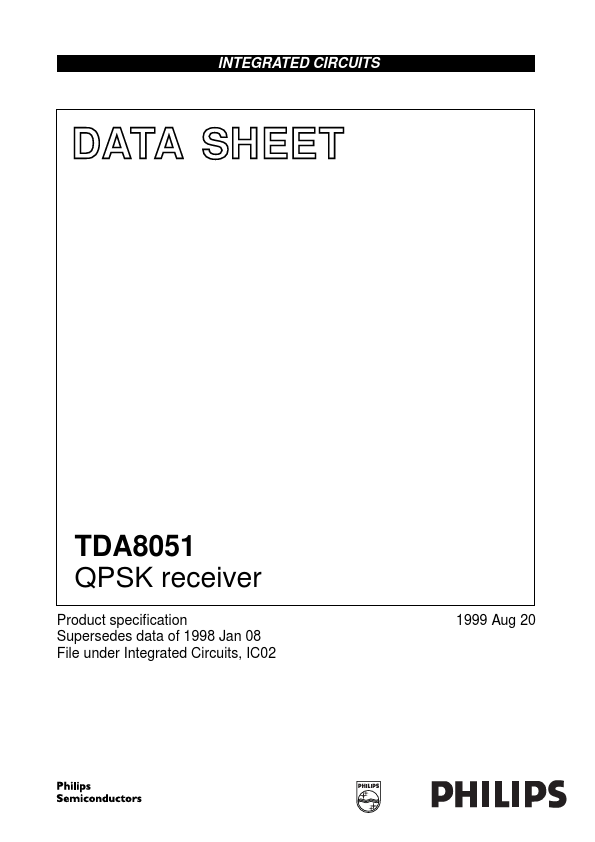

TDA8051 Datasheet Preview — Preview of TDA8051 PDF

Datasheet Details

Part number: TDA8051
Manufacturer: NXP ↗
File Size: 131.47 KB
Datasheet: TDA8051_PhilipsSemiconductors.pdf
Description: QPSK receiver

TDA8051 Product details

Description

TDA8051 This TDA8051 is a monolithic bipolar IC intended for Quadrature Phase Shift Key (QPSK) demodulation.It includes: Low noise RF and gain controlled amplifier Two matched mixers Symmetrical Voltage Controlled Oscillator (VCO) with 0 to 90° signal generator whose frequency is controlled by an integrated Phase Lock Loop (PLL) circuit. Two matched amplifiers for output base-band active filtering and output buffers The gain control is produced by outpu

Features

High operating input sensitivity.
Gain controlled amplifier.
PLL controlled carrier frequency.
Low crosstalk between I and Q channel outputs.
3-wire transmission bus.
5 V supply voltage.
