TDA8416 Datasheet - NXP

TDA8416 TV and VTR stereo/dual sound processor with integrated filters and I2C-bus control

The TDA8416 is a processor of stereo/dual language signals (B/G-standard) for stereo sound television receivers and VTRs, using the switched-capacitor technique. The AF signals at the TDA8416 inputs must be “(L+R)/2” or “language A” on one channel and “R” or “language B” on the second channel (where.

TDA8416 Features

* Use of the switched-capacitor technique for signal processing

* Small amount of peripheral components

* Integrated anti-aliasing filters

* Low distortion AF signal handling

* Integrated de-emphasis with a time constant of 50 µs

* Two general purpose

TDA8416_PhilipsSemiconductors.pdf

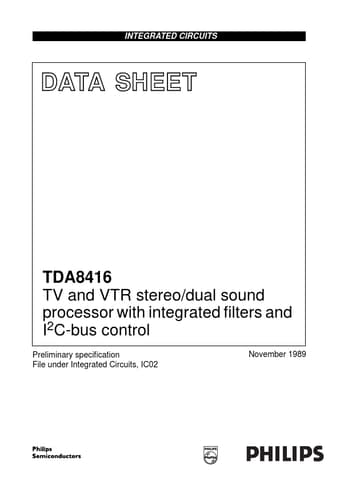

Preview of TDA8416 PDF
TDA8416 Datasheet Preview Page 2 TDA8416 Datasheet Preview Page 3

Datasheet Details

Part number:

TDA8416

Manufacturer:

NXP ↗

File Size:

134.54 KB

Description:

Tv and vtr stereo/dual sound processor with integrated filters and i2c-bus control.
