TDA8580J

Multi-purpose power amplifier

TDA8580J Features

* General

* Supply voltage range from 8 to 24 V

* Low distortion

* Few external components, fixed gain

* High output power

* Can be used as a stereo amplifier in Bridge-Tied Load (BTL) or quad Single-Ended (SE) amplifiers

* Single-ended mode without loud

TDA8580J General Description

The TDA8580J is a stereo Bridge-Tied Load (BTL) or a quad Single-Ended (SE) amplifier that operates over a wide supply voltage range from 8 to 24 V. This makes it suitable for applications such as television, home-sound systems and active speakers. Because of an internal voltage buffer, this device .

TDA8580J Datasheet (181.87 KB)

Preview of TDA8580J PDF

Datasheet Details

Part number:

TDA8580J

Manufacturer:

NXP ↗

File Size:

181.87 KB

Description:

Multi-purpose power amplifier.

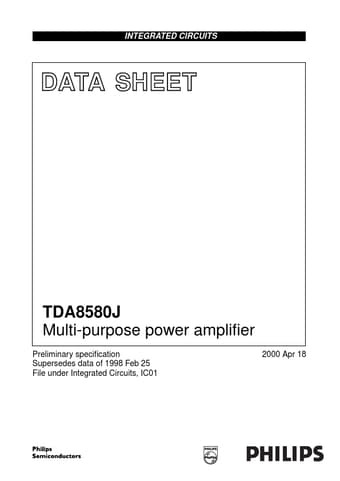

INTEGRATED CIRCUITS DATA SHEET TDA8580J Multi-purpose power amplifier Preliminary specification Supersedes data of 1998 Feb 25 File under Integrated .
