TDA9801 - Single standard VIF-PLL demodulator and FM-PLL detector

NXP

📥 Download Datasheet

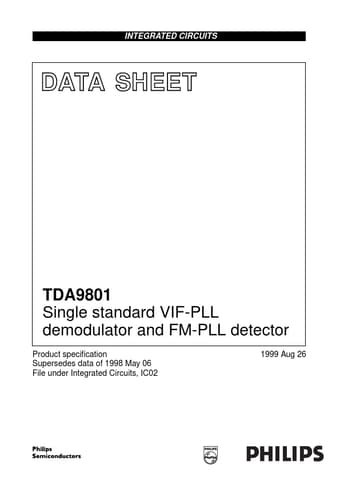

TDA9801 Datasheet Preview — Preview of TDA9801 PDF

Datasheet Details

Part number: TDA9801
Manufacturer: NXP ↗
File Size: 152.04 KB
Datasheet: TDA9801_PhilipsSemiconductors.pdf
Description: Single standard VIF-PLL demodulator and FM-PLL detector

TDA9801 Product details

Description

plastic dual in-line package; 20 leads (300 mil) plastic small outline package; 20 leads; body width 7.5 mm TDA9801 Stabilizer circuit for ripple rejection and to achieve constant output signals 5 to 9 V positive supply voltage range Low power consumption of 300 mW at 5 V supply voltage.

Features

Suitable for negative vision modulation.
Applicable for IF frequencies of 38.9, 45.75 and 58.75 MHz.
Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier (AC-coupled).
True synchronous demodulation with active carrier regeneration (ultra-linear demodulation, good intermodulation figures, reduced harmonics and excellent pulse response).
Peak sync pulse AGC.
Video amplifier to match sound trap and sound filter.
AGC.
