TEA1716T - Resonant power supply controller

TEA1716T Description

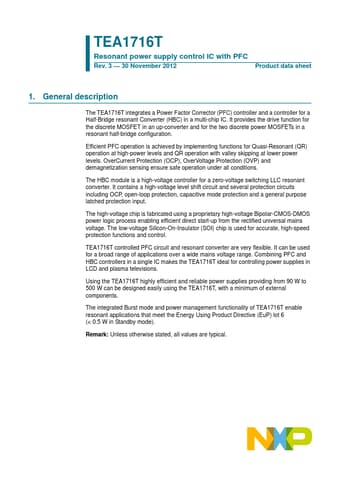

TEA1716T Resonant power supply control IC with PFC Rev.3 * 30 November 2012 Product data sheet 1.General .
The TEA1716T integrates a Power Factor Corrector (PFC) controller and a controller for a Half-Bridge resonant Converter (HBC) in a multi-chip IC.

TEA1716T Features

* 2.1 General features
* Integrated PFC and HBC controllers
* Universal mains supply operation from 70 V to 276 V (AC)
* High level of integration resulting in a low external component count and a cost effective design
* Integrated Burst mode sensing
* Compliant with Energy Using P

TEA1716T Applications

* over a wide mains voltage range. Combining PFC and HBC controllers in a single IC makes the TEA1716T ideal for controlling power supplies in LCD and plasma televisions. Using the TEA1716T highly efficient and reliable power supplies providing from 90 W to 500 W can be designed easily using the TEA17
