TEA6811V

Front-end and PLL synthesizers for car radios

TEA6811V Features

* Synthesizer function which includes a Voltage Controlled Oscillator (VCO), dividers, phase detector, charge-pump and in-lock detector

* FM mixer with AGC

* AM RF amplifier with AGC

* AM mixer. APPLICATIONS

* Car radios. GENERAL DESCRIPTION The TEA6810V and T

TEA6811V General Description

The TEA6810V and TEA6811V, together with TEA6821V forms an AM/FM receiving concept for electronically tuned car radios. The TEA681xV is an FM/AM front-end with one local synthesized oscillator for both AM and FM which is used together with the TEA6821T in a double-conversion concept. It delivers a f.

TEA6811V Datasheet (194.46 KB)

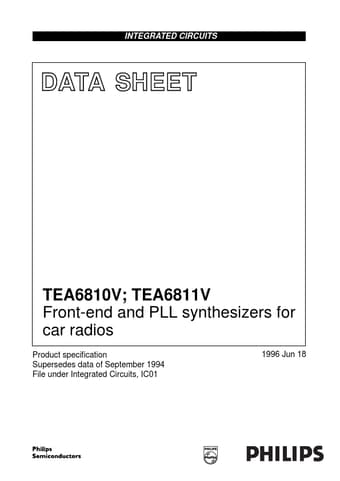

Preview of TEA6811V PDF

Datasheet Details

Part number:

TEA6811V

Manufacturer:

NXP ↗

File Size:

194.46 KB

Description:

Front-end and pll synthesizers for car radios.
INTEGRATED CIRCUITS DATA SHEET TEA6810V; TEA6811V Front-end and PLL synthesizers for car radios Product specification Supersedes data of September 19.
