TEA6823T

In Car Entertainment ICE car radio

TEA6823T Features

* General

* FM mixer for conversion from FM-IF1 = 72.2 MHz to FM-IF2 = 10.7 MHz

* AM mixer for conversion from AM-IF1 = 10.7 MHz to AM-IF2 = 450 kHz

* FM-IF gain stage

* Crystal oscillator providing mixer frequencies and references for IF-count and stereo decoder

TEA6823T General Description

plastic very small outline package; 56 leads Stereo decoder TEA6823T; TEA6825T

* Adjustment-free PLL VCO

* Pilot depending mono/stereo switching

* Analog control of mono/stereo blend

* Adjacent channel noise suppression (114 kHz)

* Pilot cancelled

* .

TEA6823T Datasheet (320.14 KB)

Preview of TEA6823T PDF

Datasheet Details

Part number:

TEA6823T

Manufacturer:

NXP ↗

File Size:

320.14 KB

Description:

In car entertainment ice car radio.

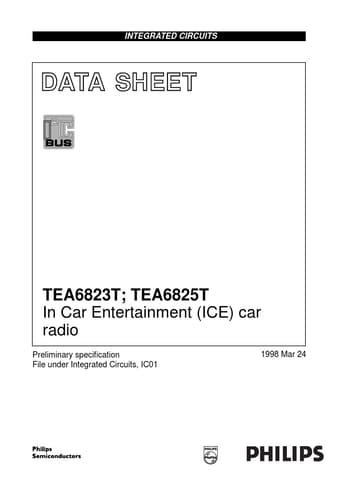

INTEGRATED CIRCUITS DATA SHEET TEA6823T; TEA6825T In Car Entertainment (ICE) car radio Preliminary specification File under Integrated Circuits, IC01.
