TEF6659HN - DSP-based radio tuner one-chip

This page provides the datasheet information for the TEF6659HN, a member of the TEF665X DSP-based radio tuner one-chip family.

Datasheet Summary

Description

The TEF6657 and TEF6659 are single-chip radio ICs including an AM/FM radio tuner and software-defined radio signal processing.

These devices are the successors to the industry-proven TEF661X product range, with improved performance and feature set at lower system cost.

Features

  • Alignment free digital receiver including tuner and software-defined radio processing.
  • Command based high-level user interface combining high control flexibility with ease of control.
  • Read information with device and tuning status, reception quality and RDS data.
  • FM receiver with a tuning range of 65 MHz to 108 MHz covering Eastern Europe (OIRT), Japan, Europe and US bands.
  • AM receiver covering LW, MW and full SW.
  • Fully integrated tuning system with low phase noise.

📥 Download Datasheet

Datasheet preview – TEF6659HN

Datasheet Details

Part number TEF6659HN
Manufacturer NXP
File Size 153.82 KB
Description DSP-based radio tuner one-chip
Datasheet download datasheet TEF6659HN Datasheet
Additional preview pages of the TEF6659HN datasheet.

📁 Similar Datasheet

  • TEF6601 - Tuner on main board IC (Philips)
  • TEF6601T - Tuner on main board IC (Philips)
  • TEF6606 - Advanced tuner on main-board IC (NXP Semiconductors)
  • TEF0510 - DC/DC Converter (Traco Electronic AG)
  • TEF0510 - DC/DC Converter (Traco Electronic AG)
  • TEF0511 - DC/DC Converter (Traco Electronic AG)
  • TEF0512 - DC/DC Converter (Traco Electronic AG)
  • TEF0521 - DC/DC Converter (Traco Electronic AG)
  • TEF0522 - DC/DC Converter (Traco Electronic AG)
  • TEF1033 - PRECISION DUAL OPERATIONAL AMPLIFIERS (ST Microelectronics)
Other Datasheets by NXP
  • TEF6659 - DSP-based radio tuner one-chip
  • TEF6657 - DSP-based radio tuner one-chip
  • TEF6657HN - DSP-based radio tuner one-chip
  • TEF6614 - Advanced tuner on main-board IC
  • TEF6621 - Tuner on main-board IC
  • TEF6624 - Tuner
  • TEF6686HN - Low IF tuner high performance one-chip
  • TEF6688HN - Low IF tuner high performance one-chip

Full PDF Text Transcription

Click to expand full text

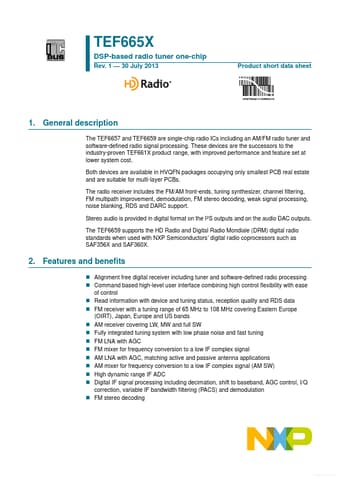

TEF665X DSP-based radio tuner one-chip Rev. 1 — 30 July 2013 Product short data sheet 1. General description The TEF6657 and TEF6659 are single-chip radio ICs including an AM/FM radio tuner and software-defined radio signal processing. These devices are the successors to the industry-proven TEF661X product range, with improved performance and feature set at lower system cost. Both devices are available in HVQFN packages occupying only smallest PCB real estate and are suitable for multi-layer PCBs. The radio receiver includes the FM/AM front-ends, tuning synthesizer, channel filtering, FM multipath improvement, demodulation, FM stereo decoding, weak signal processing, noise blanking, RDS and DARC support.
