TL431AI Datasheet - NXP

Adjustable precision shunt regulators

TL431AI Features

* NC NC NC

* Equivalent full-range temperature coefficient: 30ppm/°C

* 0.2Ω typical output impedance

* Sink current capability: 1mA to 100mA

* Low output noise

* Adjustable output voltage: VREF to 36V Z, LP, U Package CATHODE ANODE SOT54 REF SL01167 Figure

TL431AI General Description

The TL431 and TL431A are 3-terminal adjustable shunt regulators with specified thermal stability over applicable automotive and commercial temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5V) and 36V with two external resistors (see Figure 4). These device.

TL431AI Datasheet (189.57 KB)

TL431AI Datasheet Preview — Preview of TL431AI PDF

Datasheet Details

Part number:

TL431AI

Manufacturer:

NXP ↗

File Size:

189.57 KB

Description:

Adjustable precision shunt regulators.

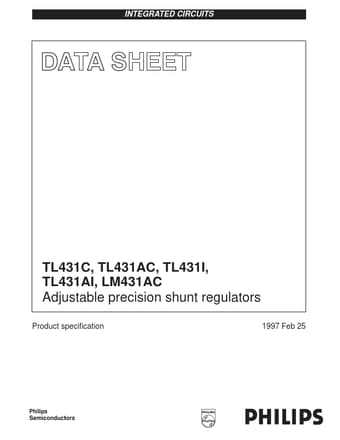

INTEGRATED CIRCUITS TL431C, TL431AC, TL431I, TL431AI, LM431AC Adjustable precision shunt regulators Product specification 1997 Feb 25 Philips Semico.
