TZA1024T

Data amplifier and laser supply circuit for CD audio and video optical systems ADALAS

TZA1024T Features

* Supports a wide range of voltage output mechanisms

* RF amplifier designed for audio and video applications with data rates up to a maximum of n = 4 times speed

* Programmable RF gain for CD-Audio/Video (CD-A/V) and CD-Read/Write (CD-R/W) discs

* Adjustable equalize

TZA1024T General Description

TZA1024 The RF bandwidth allows this device to be used in CD-A/V and CD-R/W applications with a data rate up to a maximum of n = 4 times speed. The RF gain can be adapted for CD-A/V discs or CD-R/W discs by means of the gain select signal. The equalizer can be adjusted for n = 1 or n = 2 times spe.

TZA1024T Datasheet (134.41 KB)

Preview of TZA1024T PDF

Datasheet Details

Part number:

TZA1024T

Manufacturer:

NXP ↗

File Size:

134.41 KB

Description:

Data amplifier and laser supply circuit for cd audio and video optical systems adalas.

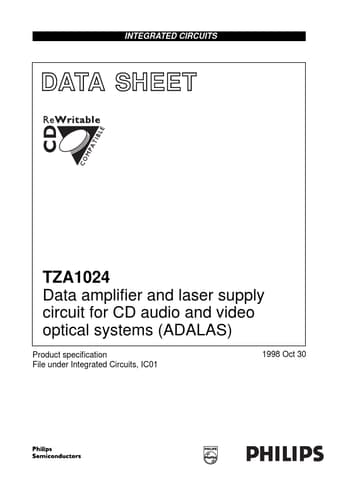

INTEGRATED CIRCUITS DATA SHEET TZA1024 Data amplifier and laser supply circuit for CD audio and video optical systems (ADALAS) Product specification .
