TZA3030

SDH/SONET STM1/OC3 optical receiver

NXP

TZA3030 Features

* Low equivalent input noise, typically 1 pA/√Hz

* Wide dynamic range, typically 0.5 µA to 2 mA

* On-chip low-pass filter. The bandwidth can be varied between 90 and 150 MHz using an external resistor. Default value is 120 MHz.

* Differential transimpedance of 1.8 MΩ

TZA3030 General Description

plastic low proﬁle quad ﬂat package; 32 leads; body 5 × 5 × 1.4 mm naked die in wafﬂe pack carriers; die dimensions 1.58 × 1.58 mm APPLICATIONS TZA3030

* Digital fibre optic receiver in short, medium and long haul optical telecommunications transmission systems or in high speed data networ.

TZA3030 Datasheet (502.50 KB)

TZA3030 Datasheet Preview — Preview of TZA3030 PDF

Datasheet Details

Part number:

TZA3030

Manufacturer:

NXP ↗

File Size:

502.50 KB

Description:

Sdh/sonet stm1/oc3 optical receiver.

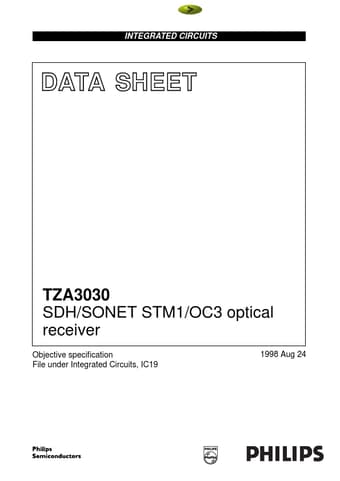

INTEGRATED CIRCUITS DATA SHEET TZA3030 SDH/SONET STM1/OC3 optical receiver Objective speciﬁcation File under Integrated Circuits, IC19 1998 Aug 24 .
