UMA1016AT

Frequency synthesizer for radio communication equipment

UMA1016AT Features

* RF input frequencies to 1 GHz

* Fully programmable RF divider

* 3-wire serial bus interface

* On-chip 3 to 16 MHz crystal oscillator

* Mask programmable ÷2 to ÷31 reference divider ratio

* Up to 1 MHz channel spacing

* Crystal frequency buffe

UMA1016AT General Description

UMA1016xT The UMA1016xT is a low power synthesizer for radio communications. Manufactured in bipolar technology, it is designed for a 70 to 1000 kHz channel spacing in the 500 to 1000 MHz band. The channel is programmed via a 3-wire serial bus. The internal dual register architecture allows a sing.

UMA1016AT Datasheet (85.87 KB)

Preview of UMA1016AT PDF

Datasheet Details

Part number:

UMA1016AT

Manufacturer:

NXP ↗

File Size:

85.87 KB

Description:

Frequency synthesizer for radio communication equipment.

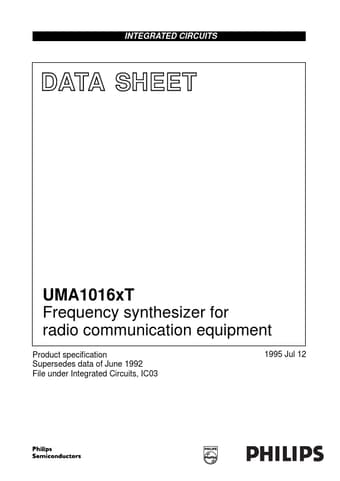

INTEGRATED CIRCUITS DATA SHEET UMA1016xT Frequency synthesizer for radio communication equipment Product specification Supersedes data of June 1992 F.
