VC16374ADGG

16-bit edge triggered D-type flip-flop with 5 Volt tolerant inputs/outputs 3-State

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74LVC16374ADGG,118 IC FF D-TYPE DBL 8-BIT 48-TSSOP DigiKey 2361 1000 units
$0.49

VC16374ADGG Datasheet (82.10 KB)

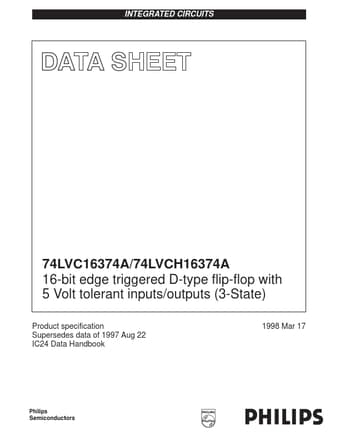

Preview of VC16374ADGG PDF Datasheet

Datasheet Details

Part number:

VC16374ADGG

Manufacturer:

NXP ↗

File Size:

82.10 KB

Description:

16-bit edge triggered d-type flip-flop with 5 volt tolerant inputs/outputs 3-state

VC16374ADGG Features

* 5 volt tolerant inputs/outputs for interfacing with 5V logic

* Wide supply voltage range of 1.2 V to 3.6 V

* Complies with JEDEC standard no. 8-1A

* CMOS low power consumption

* MULTIBYTETM flow-through standard pin-out architecture

* Low inductance

VC16374ADGG General Description

The 74LVC(H)16374A is a 16-bit edge-triggered flip-flop featuring separate D-type inputs for each flip-flop and 3-State outputs for bus oriented applications. The 74LVC16374A consists of 2 sections of eight positive edge-triggered flip-flops. A clock (CP) input and an output enable (OE) are provided.
