Z0103NN - 4Q Triac

Datasheet Summary

Description

Planar passivated very sensitive gate four quadrant triac in a SOT223 (SC-73) surfacemountable plastic package intended for applications requiring direct interfacing to logic level ICs and low power gate drivers.

2.

Features

  • Direct interfacing to logic level ICs.
  • Direct interfacing to low power gate drive circuits.
  • High blocking voltage capability.
  • Planar passivated for voltage ruggedness and reliability.
  • Surface-mountable package.
  • Triggering in all four quadrants.
  • Very sensitive gate in four quadrants 3.

📥 Download Datasheet

Datasheet preview – Z0103NN

Datasheet Details

Part number Z0103NN
Manufacturer NXP
File Size 253.80 KB
Description 4Q Triac
Datasheet download datasheet Z0103NN Datasheet
Additional preview pages of the Z0103NN datasheet.

📁 Similar Datasheet

  • Z0103NN - Standard 1A Triacs (STMicroelectronics)
  • Z0103NN - 4Q Triac (WeEn)
  • Z0103NN0 - 4Q Triac (WeEn)
  • Z0103NA - 4Q Triac (WeEn)
  • Z0103NA - Standard 1A Triacs (STMicroelectronics)
  • Z0103NA - Sensitive Gate Triacs (HAOPIN)
  • Z0103NA0 - 4Q Triac (WeEn)
  • Z0103 - 1A Triacs (SiPower)
  • Z0103MA - Standard 1A Triacs (STMicroelectronics)
  • Z0103MA - 4Q Triac (WeEn)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

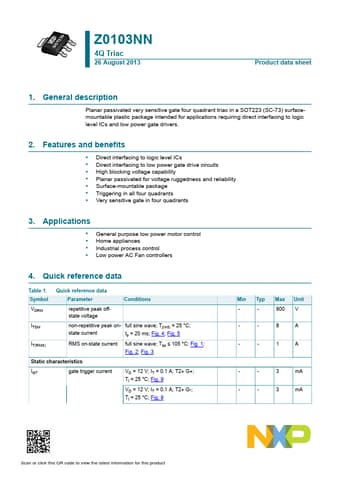

SOT223 Z0103NN 4Q Triac 26 August 2013 Product data sheet 1. General description Planar passivated very sensitive gate four quadrant triac in a SOT223 (SC-73) surfacemountable plastic package intended for applications requiring direct interfacing to logic level ICs and low power gate drivers. 2. Features and benefits • Direct interfacing to logic level ICs • Direct interfacing to low power gate drive circuits • High blocking voltage capability • Planar passivated for voltage ruggedness and reliability • Surface-mountable package • Triggering in all four quadrants • Very sensitive gate in four quadrants 3. Applications • General purpose low power motor control • Home appliances • Industrial process control • Low power AC Fan controllers 4. Quick reference data Table 1.
